【Product Promotion】40V Wide Voltage Conquers All Operating Conditions, 7MHz Gain-Bandwidth Product + 22Vus Slew Rate, Signal Response Never Derails — AiP893XR

The AiP893XR series is a high-voltage, high-slew-rate, rail-to-rail output operational amplifier independently developed by I-CORE Electronics. Its core performance benchmarks against products with equivalent specifications, with all key parameters fully maximized: supporting a wide operating voltage range of 3V to 40V, a high slew rate of 22V/us paired with a 7MHz gain-bandwidth product, it easily achieves high-speed, precision signal following and amplification. The single-channel quiescent current is only 1mA, and the open-loop gain reaches as high as 120dB. It is perfectly suited for high-voltage, high-speed amplification scenarios such as motor control, audio power amplification, and industrial signal chains, providing a high-stability, high-flexibility solution for domestic substitution.

Product Advantages：

Low Static Power Consumption: The single-channel quiescent current is only 1mA, effectively reducing overall system power consumption and making it suitable for low-power, battery-powered applications.
Wide Voltage and High-Voltage Adaptability: Supporting a wide supply voltage range from 3V to 40V, it can withstand high-voltage operating conditions, making it ideal for high-voltage applications such as motor control and industrial drives, while enhancing system reliability.
Excellent High-Speed Response: This product combines a 7MHz high gain-bandwidth with a 22V/us high slew rate, delivering fast signal response. It accurately processes high-frequency, fast-changing signals, providing both high-speed and high-voltage drive capability.
Wide Common-Mode Voltage Input: The input common-mode range extends from 0 to Vcc-1.5V. This wide common-mode input range greatly enhances circuit design flexibility, making it suitable for complex applications such as single-supply operation and ground-referenced signal detection.

Main features：

Supply voltage: 3V to 40V
Gain-bandwidth product: 7MHz
Slew rate: 22V/μs
Input offset voltage: ≤4mV
Input common-mode voltage range: VSN to VSP-1.5 V
Output short-circuit current: 38mA
Open-loop voltage gain: 130dB
Operating temperature: -40°C to 125°C

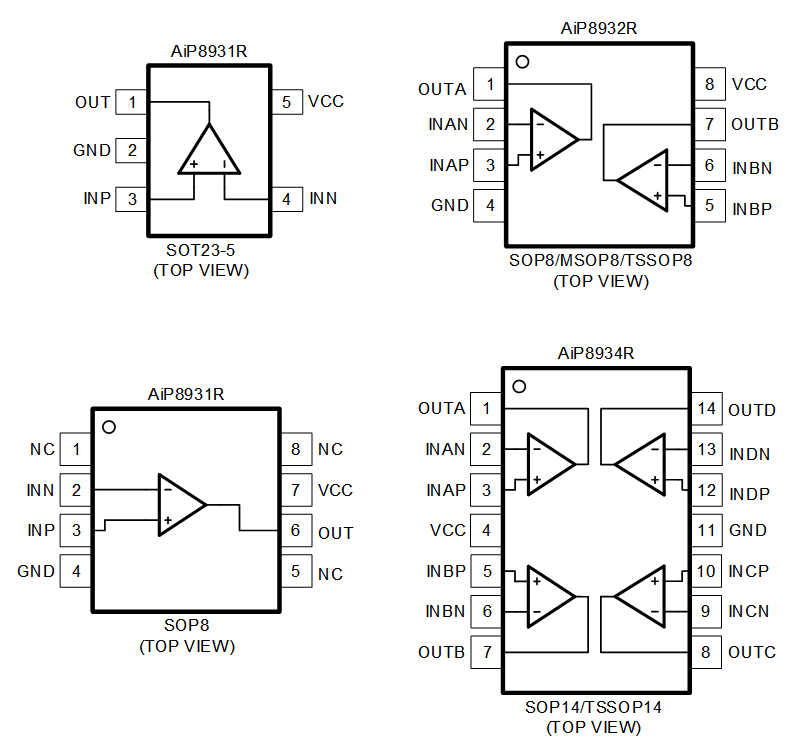

Package form:
‒ AiP8931R：SOT23-5/SOP8
‒ AiP8932R：SOP8/MSOP8/TSSOP8
‒ AiP8934R：SOP14/TSSOP14

AiP893XR series detailed Specifications：

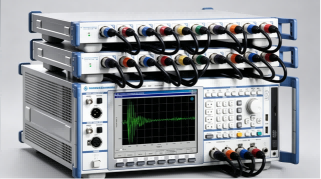

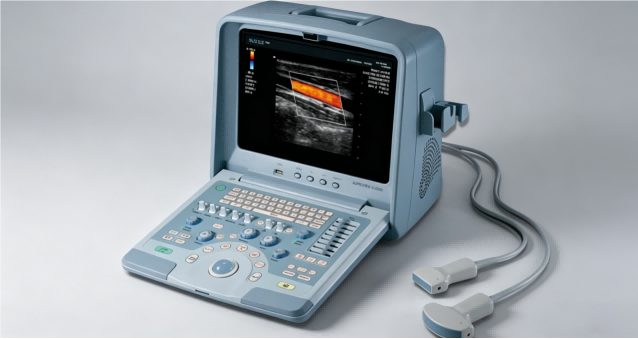

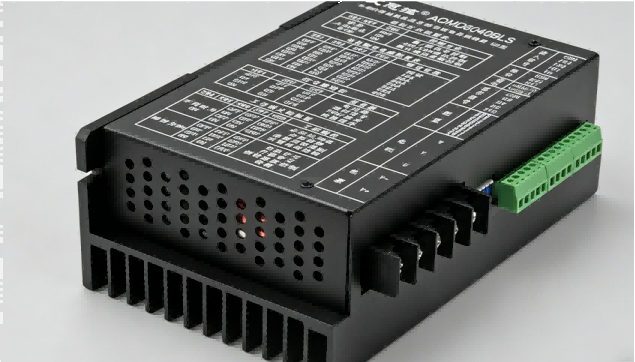

Applications Field

Conclusions：

The AiP893XR is a high-voltage, low-power, high-speed rail-to-rail operational amplifier. In addition, I-CORE Electronics will subsequently launch the 10MHz high-voltage, high-speed rail-to-rail operational amplifiers AiP894X and AiP894XR, as well as the AiP891X/XR and AiP892X/XR series with even lower static power consumption for customers to choose from. For more product information or technical support, please feel free to contact us.
